Microscope Compound Advanced Ba410Eb, Each

Details

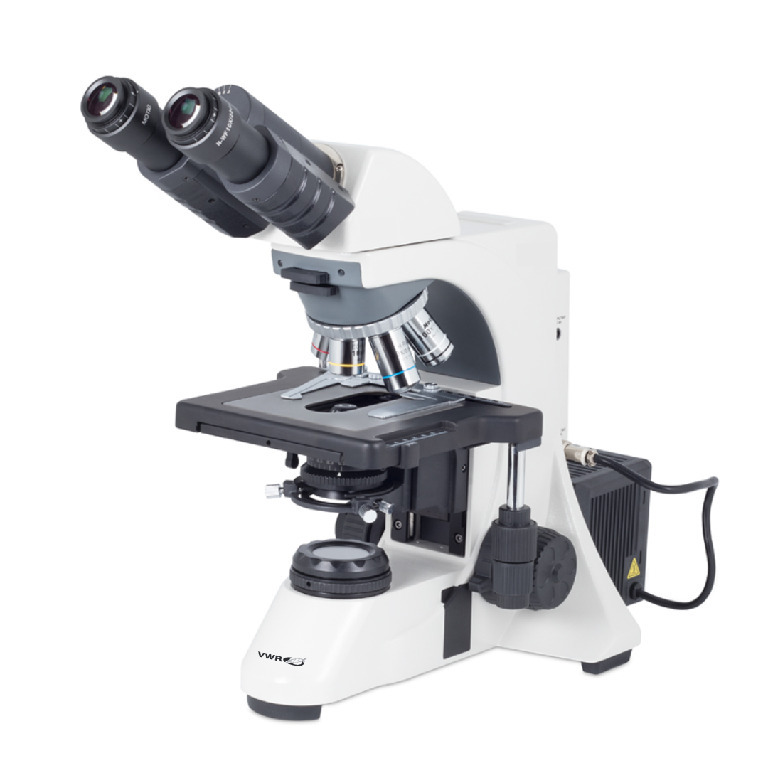

This advanced research microscope is designed to address diverse questions in both life sciences and material sciences. The standard EC-H Plan achromat objectives can be replaced with fluorite and apochromatic lenses for maximum optical performance. Demanding users benefit from the system's flexibility, which allows them to configure a personal microscope tailored to their individual requirements. The microscope features: • Advanced compound microscope binocular head, Siedentopf type, 30° inclined, and 360° rotating • Widefield high eyepoint eyepieces WFPL10×/20 mm with diopter adjustment on both eyepieces and rubber eyecup (paired) • Reversed sextuple nosepiece • CCIS Plan achromat objectives: EC-H PL4×, EC-H PL10×, EC-H PL40× S, EC-H PL100× S-oil • Coaxial coarse and fine focusing adjustment • Built-in low-position rackless stage with right-hand control • Achromat swing-out condenser N.A. 0.90 with iris diaphragm • Accessories: immersion oil (5 ml), power cord, Allen hexagonal key, vinyl dust cover • Koehler illumination with 3 W LED and external lamp house, featuring intensity control Universal power supply: 100-240 V cUL. Available in binocular (Cat. No.: 77676-446) and trinocular (Cat. No.: 77676-448) configurations.
