$ 19,226.19
Details

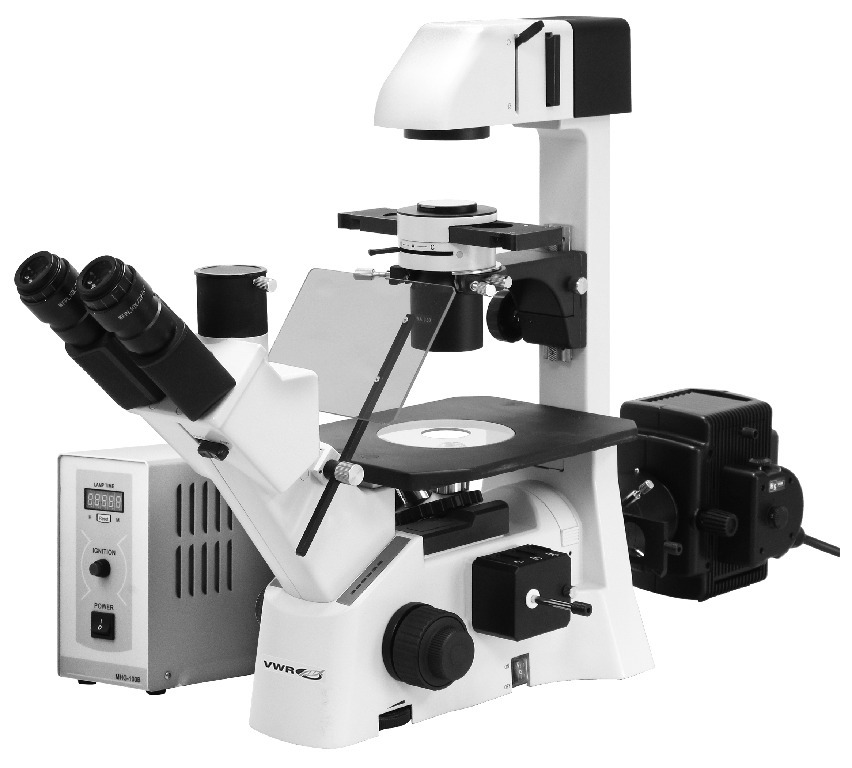

| This microscope is a live cell microscope platform for advanced microbiology. The instrument can be upgraded with Fluorescence for research tasks. Upgraded Inverted microscopes for routine microbiology. This microscope is ready for the inspection of native samples in cell culture flasks. |, Trinocular inverted microscope: |
Siedentopf trinocular tube 45° inclined (light split: 20/80) |
WF PL 10×/22 mm high eyepoint eyepiece, with diopter adjustment and rubber eyecup |
Side facing quintuple nosepiece |
CCIS Plan Achromat objective PL4× |
CCIS Plan Achromat phase objective PL Ph10×, LWD PL Ph20×, LWD PL Ph40× |
ELWD N.A. 0.30 (W.D. 72 mm) condenser |
Phase slider Ph0, BF, Ph1 |
Phase centering telescope |
Plain stage, glass and metal stage inserts |
6 V 30 W Halogen illumination with intensity control |
45 mm blue, ground glass and green interference filter |
Power cord, allen hexagonal key, vinyl dust cover |
Universal power supply 100 to 240 V UL modular system |
Universal attachable mechanical stage with well plate holders (128×86 mm) |
35 mm Petri dish holder |
54 mm Petri dish and slide holder |
65 mm Petri dish and Teraski holder |, 04_BodyText: | 4K built-in 11.6" LCD screen HDMI camera: |
0.5× C-Mount camera adapter (1/2) |
LCD 11.6" Full HD HDMI monitor with attached microscopy camera |
Microscopy camera with 4K(3840×2160) resolution |
4K through HDMI and 8 MP (3864×2228 pixels) capture resolution |
3840×2160 @ 30fps through USB connection |
12 V Power adapter, CS ring, Motic 4-dot calibration slide, dust cap, manual, 12 mm lens, adapter Ø 30/Ø 38, macro tube, macro calibration card |
Images Plus 3.1 for Windows/macOS |
Camera control panel including: Exposure, gain, white balance, color adjustment, sharpness and denoising control |
Toolbar including: Zoom, mirror, comparison, freeze, measure, cross, browser function |, 05_BodyText: | Complete EPI-Fluorescence attachment for this microscope consists of the following individually listed parts: |
Epi-Fluorescence attachment with filter cassette |
Mercury lamp 100 W |
Lamphouse HBO 100 W, collector lens and mercury lamp socket for HBO 100 W |
Starter unit HBO 100 W |
Lamp centering tool |
Power cord |, 06_BodyText: | Standard fluorescence filter sets: |
DAPI/Hoechst/AlexaFluor 350; Exciter D350/50×; Dichroic 400DCLP; Emitter D460/50 m; |
EGFP/FITC/Cy2/AlexaFluor 488; Exciter AT480/30×; Dichroic AT505DC; Emitter AT535/40 m; |
TRITC/Cy3/TagRFP/AlexaFluor 546; Exciter AT540/25×; Dichroic AT565DC; Emitter AT605/55 |, Inverted trinocular microscope with 4 objectives and 4K built-in 11.6" LCD screen HDMI camera bundle, Cat. No.: 77676-470, | This microscope is a live cell microscope platform for advanced microbiology. The instrument can be upgraded with Fluorescence for research tasks. Upgraded Inverted microscopes for routine microbiology. This microscope is ready for the inspection of native samples in cell culture flasks. |, Trinocular inverted microscope: |
Siedentopf trinocular tube 45° inclined (light split: 20/80) |
WF PL 10×/22 mm high eyepoint eyepiece, with diopter adjustment and rubber eyecup |
Side facing quintuple nosepiece |
CCIS Plan Achromat objective PL4× |
CCIS Plan Achromat phase objective PL Ph10×, LWD PL Ph20×, LWD PL Ph40× |
ELWD N.A. 0.30 (W.D. 72 mm) condenser |
Phase slider Ph0, BF, Ph1 |
Phase centering telescope |
Plain stage, glass and metal stage inserts |
6 V 30 W Halogen illumination with intensity control |
45 mm blue, ground glass and green interference filter |
Power cord, allen hexagonal key, vinyl dust cover |
Universal power supply 100 to 240 V UL modular system |
Universal attachable mechanical stage with well plate holders (128×86 mm) |
35 mm Petri dish holder |
54 mm Petri dish and slide holder |
65 mm Petri dish and Teraski holder |, 04_BodyText: | 4K built-in 11.6" LCD screen HDMI camera: |
0.5× C-Mount camera adapter (1/2) |
LCD 11.6" Full HD HDMI monitor with attached microscopy camera |
Microscopy camera with 4K(3840×2160) resolution |
4K through HDMI and 8 MP (3864×2228 pixels) capture resolution |
3840×2160 @ 30fps through USB connection |
12 V Power adapter, CS ring, Motic 4-dot calibration slide, dust cap, manual, 12 mm lens, adapter Ø 30/Ø 38, macro tube, macro calibration card |
Images Plus 3.1 for Windows/macOS |
Camera control panel including: Exposure, gain, white balance, color adjustment, sharpness and denoising control |
Toolbar including: Zoom, mirror, comparison, freeze, measure, cross, browser function |, 05_BodyText: | Complete EPI-Fluorescence attachment for this microscope consists of the following individually listed parts: |
Epi-Fluorescence attachment with filter cassette |
Mercury lamp 100 W |
Lamphouse HBO 100 W, collector lens and mercury lamp socket for HBO 100 W |
Starter unit HBO 100 W |
Lamp centering tool |
Power cord |, 06_BodyText: | Standard fluorescence filter sets: |
DAPI/Hoechst/AlexaFluor 350; Exciter D350/50×; Dichroic 400DCLP; Emitter D460/50 m; |
EGFP/FITC/Cy2/AlexaFluor 488; Exciter AT480/30×; Dichroic AT505DC; Emitter AT535/40 m; |
TRITC/Cy3/TagRFP/AlexaFluor 546; Exciter AT540/25×; Dichroic AT565DC; Emitter AT605/55 |, | This microscope is a live cell microscope platform for advanced microbiology. The instrument can be upgraded with Fluorescence for research tasks. Upgraded Inverted microscopes for routine microbiology. This microscope is ready for the inspection of native samples in cell culture flasks. |, Trinocular inverted microscope: |
Siedentopf trinocular tube 45° inclined (light split: 20/80) |
WF PL 10×/22 mm high eyepoint eyepiece, with diopter adjustment and rubber eyecup |
Side facing quintuple nosepiece |
CCIS Plan Achromat objective PL4× |
CCIS Plan Achromat phase objective PL Ph10×, LWD PL Ph20×, LWD PL Ph40× |
ELWD N.A. 0.30 (W.D. 72 mm) condenser |
Phase slider Ph0, BF, Ph1 |
Phase centering telescope |
Plain stage, glass and metal stage inserts |
6 V 30 W Halogen illumination with intensity control |
45 mm blue, ground glass and green interference filter |
Power cord, allen hexagonal key, vinyl dust cover |
Universal power supply 100 to 240 V UL modular system |
Universal attachable mechanical stage with well plate holders (128×86 mm) |
35 mm Petri dish holder |
54 mm Petri dish and slide holder |
65 mm Petri dish and Teraski holder |, 04_BodyText: | 4K built-in 11.6" LCD screen HDMI camera: |
0.5× C-Mount camera adapter (1/2) |
LCD 11.6" Full HD HDMI monitor with attached microscopy camera |
Microscopy camera with 4K(3840×2160) resolution |
4K through HDMI and 8 MP (3864×2228 pixels) capture resolution |
3840×2160 @ 30fps through USB connection |
12 V Power adapter, CS ring, Motic 4-dot calibration slide, dust cap, manual, 12 mm lens, adapter Ø 30/Ø 38, macro tube, macro calibration card |
Images Plus 3.1 for Windows/macOS |
Camera control panel including: Exposure, gain, white balance, color adjustment, sharpness and denoising control |
Toolbar including: Zoom, mirror, comparison, freeze, measure, cross, browser function |, 05_BodyText: | Complete EPI-Fluorescence attachment for this microscope consists of the following individually listed parts: |
Epi-Fluorescence attachment with filter cassette |
Mercury lamp 100 W |
Lamphouse HBO 100 W, collector lens and mercury lamp socket for HBO 100 W |
Starter unit HBO 100 W |
Lamp centering tool |
Power cord |, 06_BodyText: | Standard fluorescence filter sets: |
DAPI/Hoechst/AlexaFluor 350; Exciter D350/50×; Dichroic 400DCLP; Emitter D460/50 m; |
EGFP/FITC/Cy2/AlexaFluor 488; Exciter AT480/30×; Dichroic AT505DC; Emitter AT535/40 m; |
TRITC/Cy3/TagRFP/AlexaFluor 546; Exciter AT540/25×; Dichroic AT565DC; Emitter AT605/55 |, Inverted fluorescence trinocular microscope with EPI with 4K built-in 11.6" LCD Screen HDMI camera bundle, Cat. No.: 77676-472
